PRCMP06BH

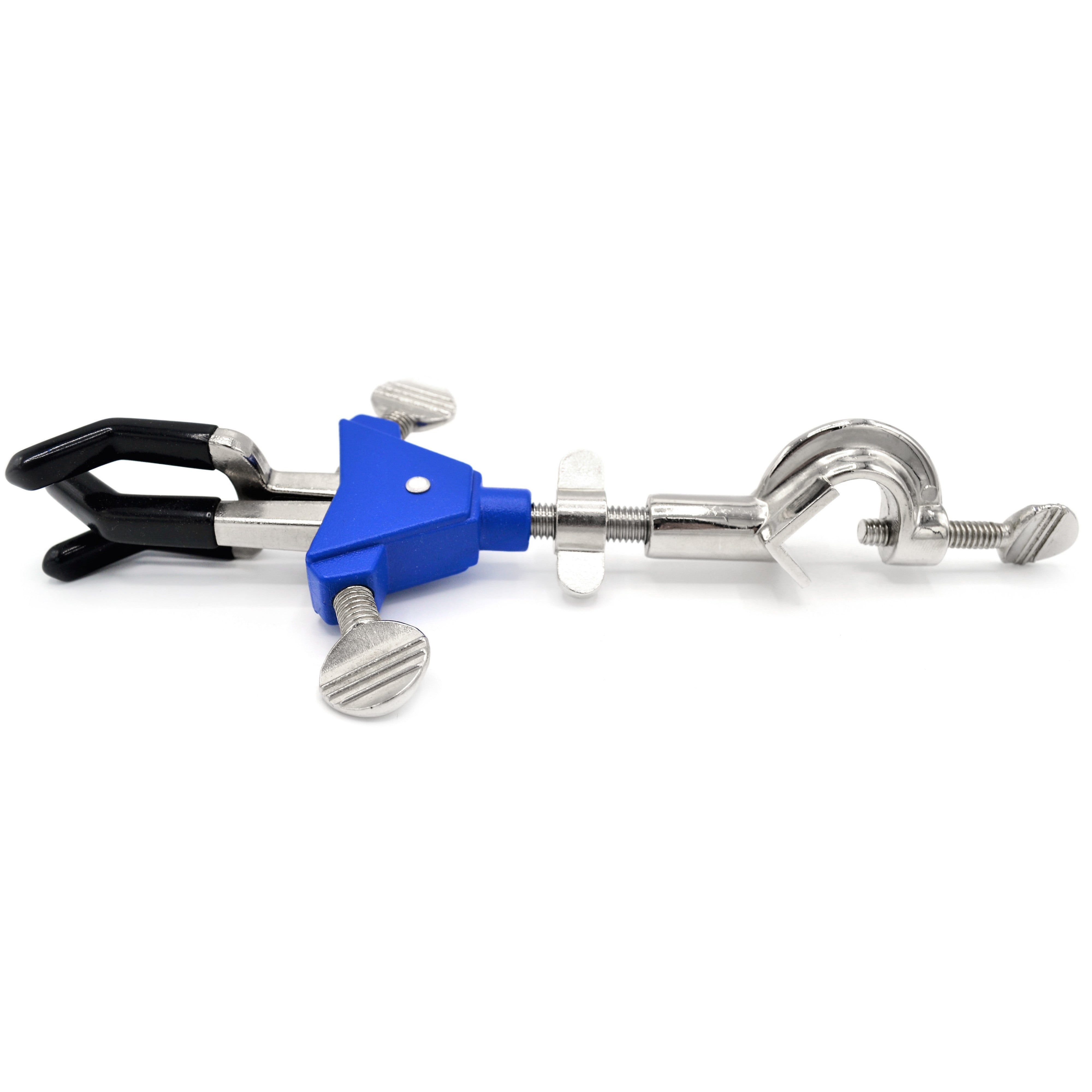

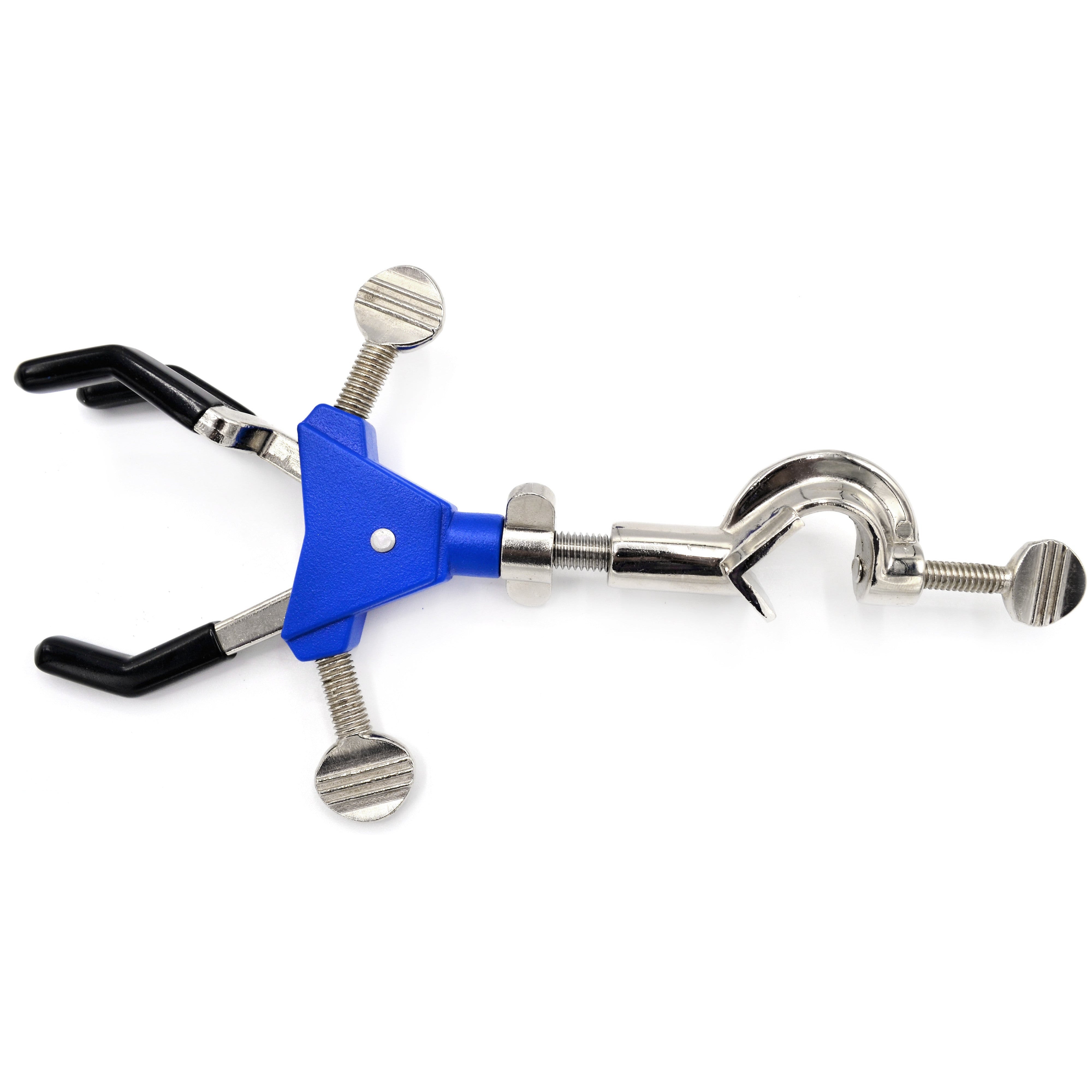

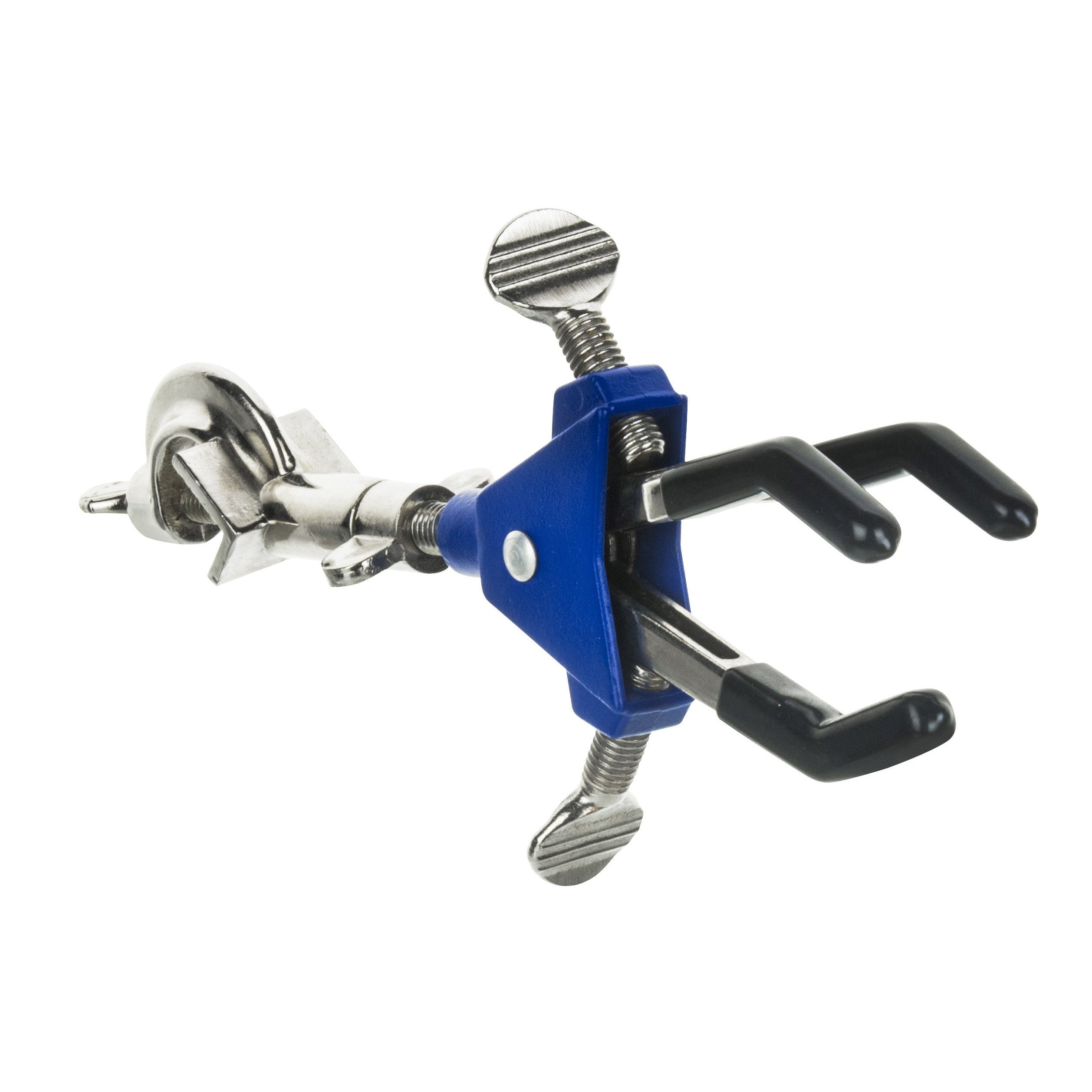

3 Finger, Vinyl Coated, Dual Adjustment Lab Clamp with Boss Head, 2.3" (6 cm) Maximum Clamp Opening

  • Sale
  • Regular price



  • Ideal uses for beakers, Erlenmeyer flasks, test-tubes, boiling (Florence) flasks, burets

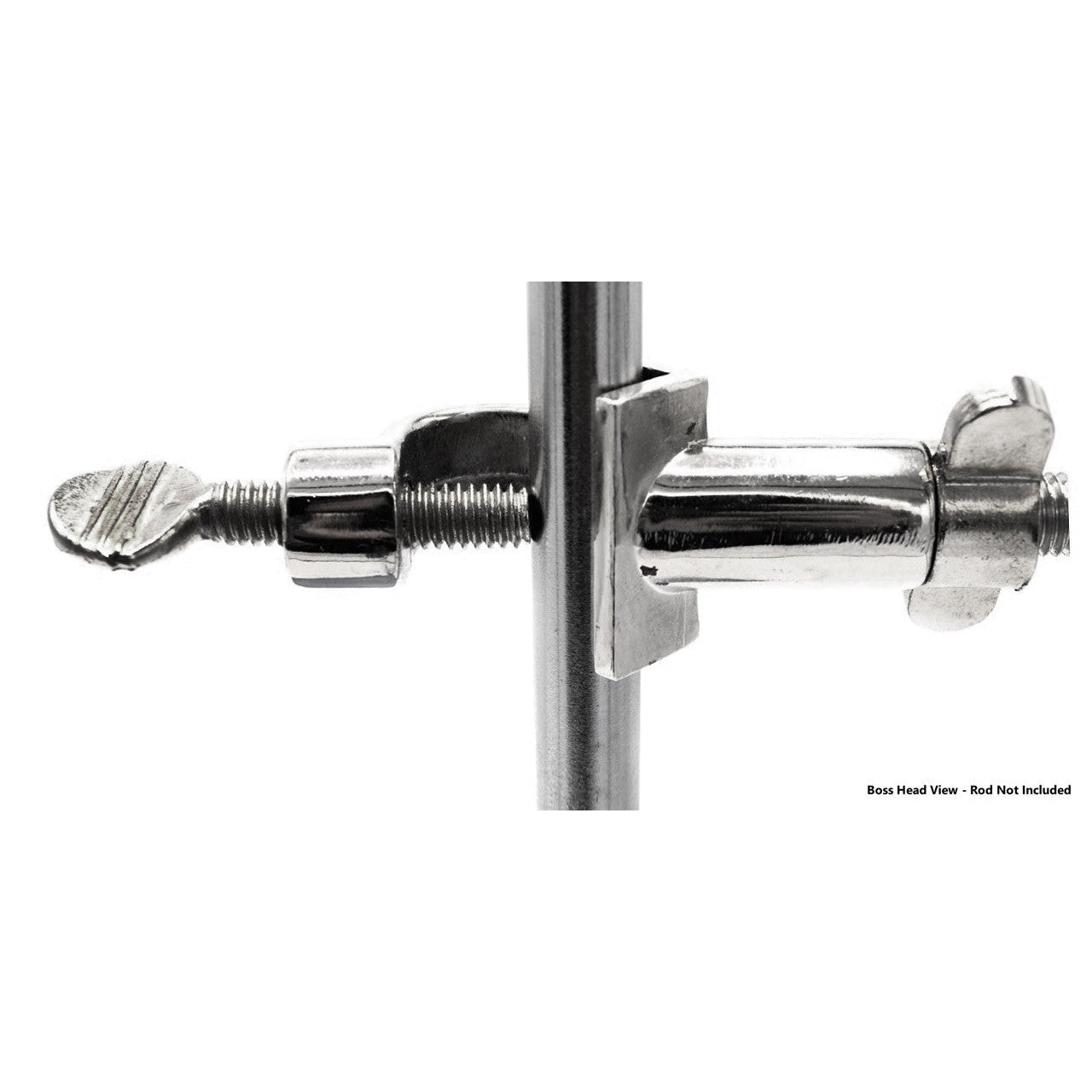

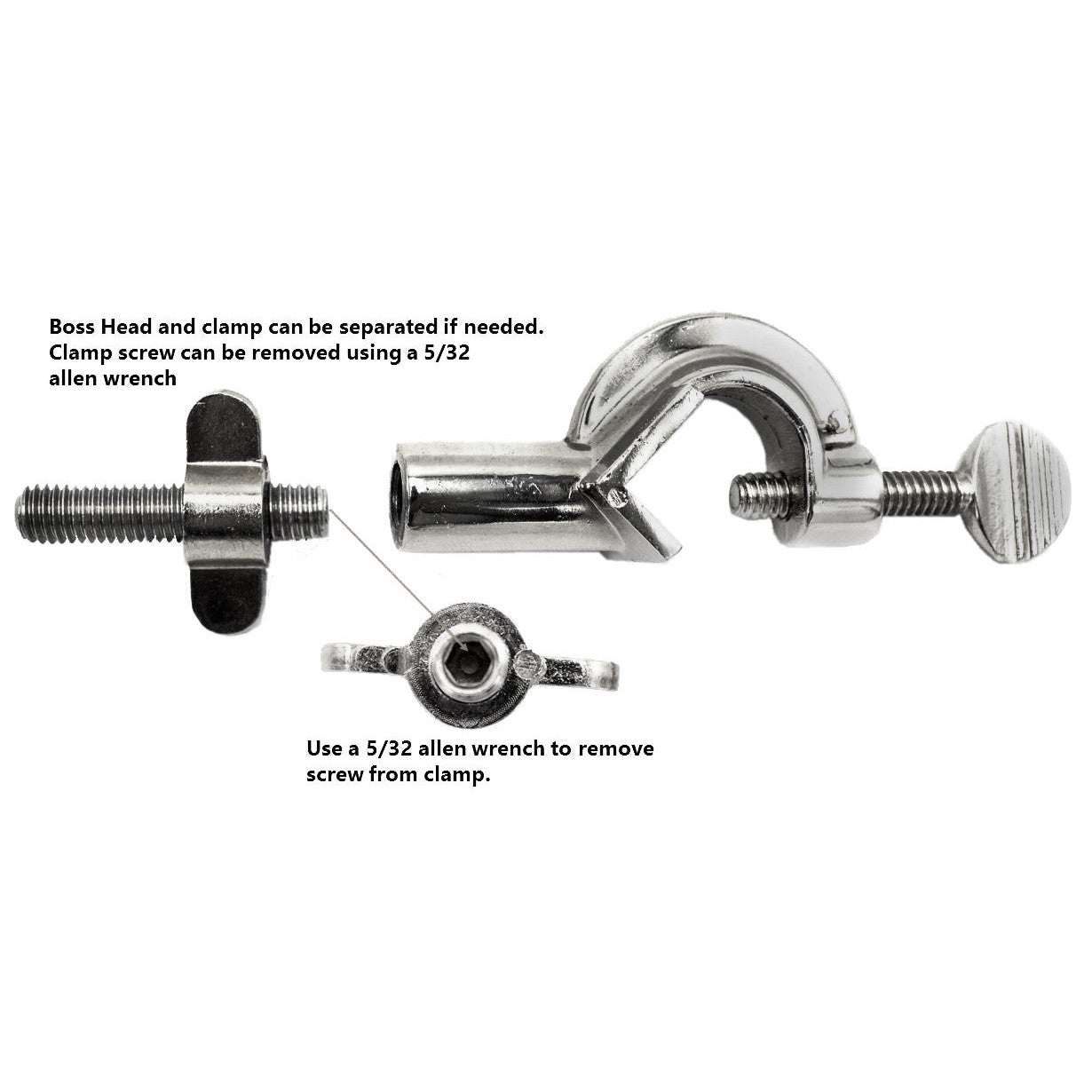

  • The clamp includes a high strength alloy Boss Head for securing the clamp to a frame or other apparatus.  The Boss Head will accept a rod diameter of 18 mm (approximately 11/16")
  • Swivel between clamp and Boss Head

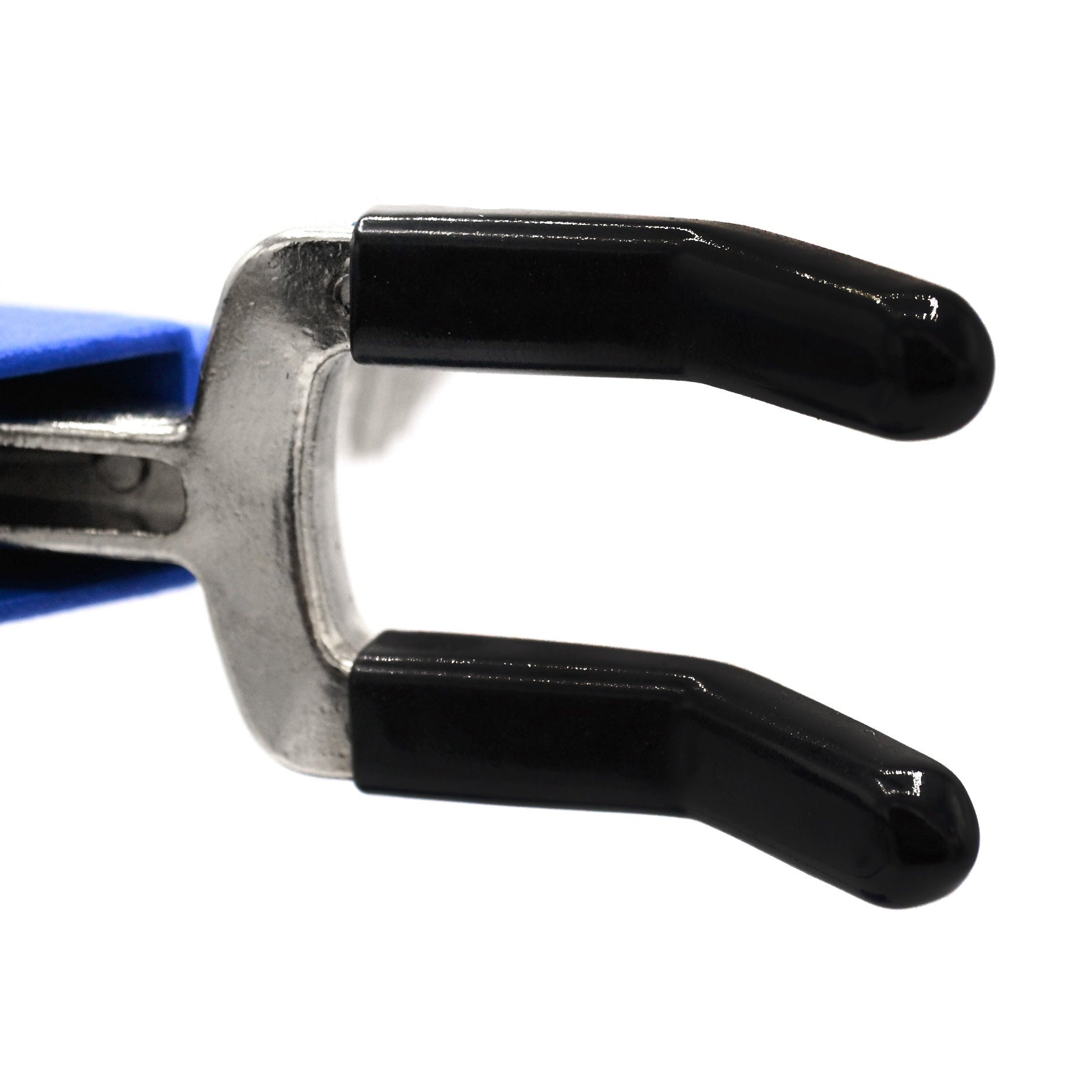

  • The prongs are coated in vinyl for higher temperature applications
 Adjustment Type Single Adjustment
Clamp Size Medium
Number of Fingers 3
Length of Clamp + Rod (in)

11

Length of Clamp + Rod (cm)

27.5

Rod Length (in)

5  5/8

Rod Length (cm)

14

Rod Diameter (in)

3/8

Grip Height (in)

1  1/4

Grip Height (cm)

3.2

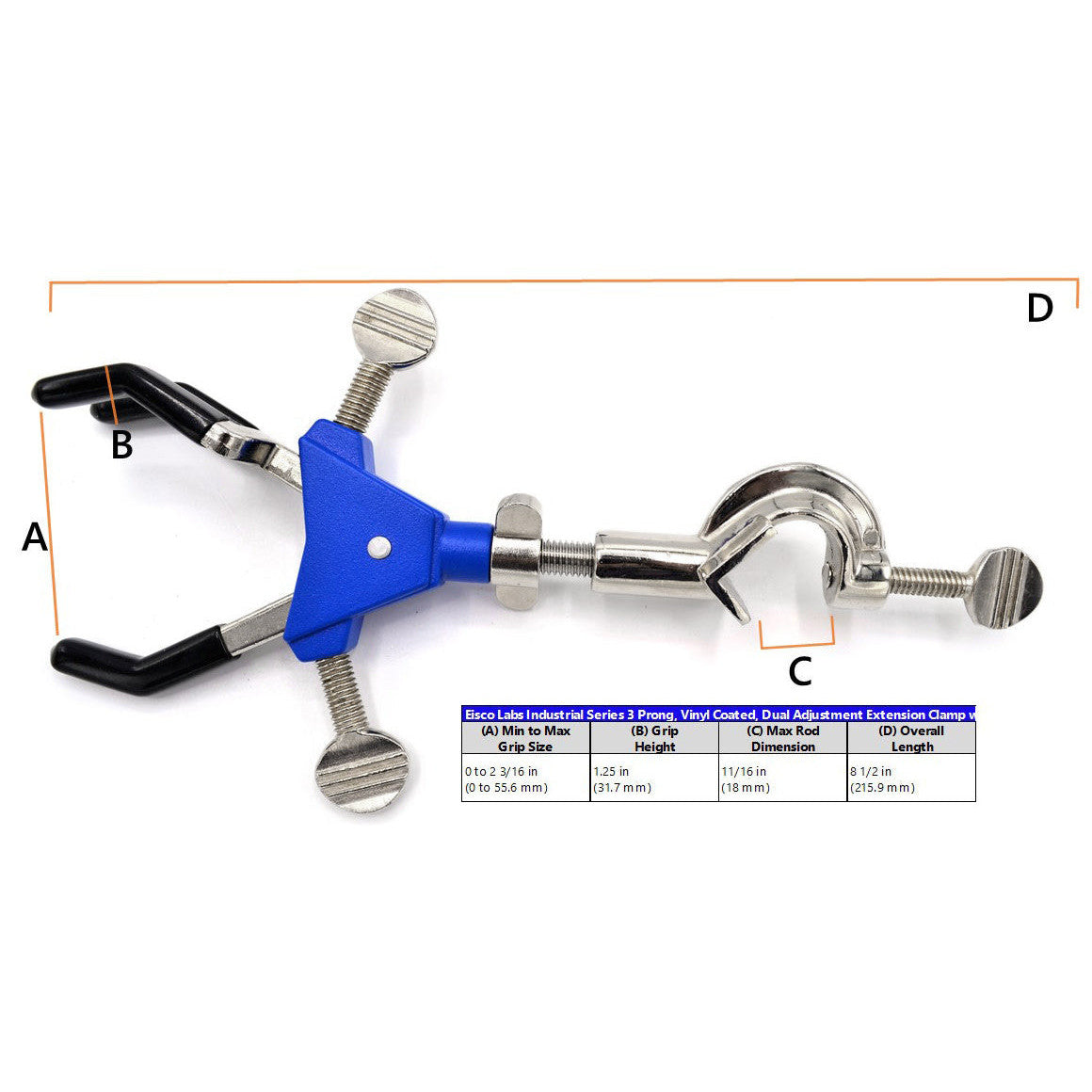

Max Opening (in)

3  5/8

Max Opening (cm)

9.2

Min Opening (in

0

Min Opening (cm)

0

Boss Head Max Opening

N/A

Prong Coating

Vinyl

Spring Loaded Jaws

No

Adjustment Screw Composition

Metal

Body Composition

Made of zinc and powder coated alloy with metal adjustment screw

Extension Rod Composition

Stainless Steel

Boss Head Included

Yes
