CH0996LP

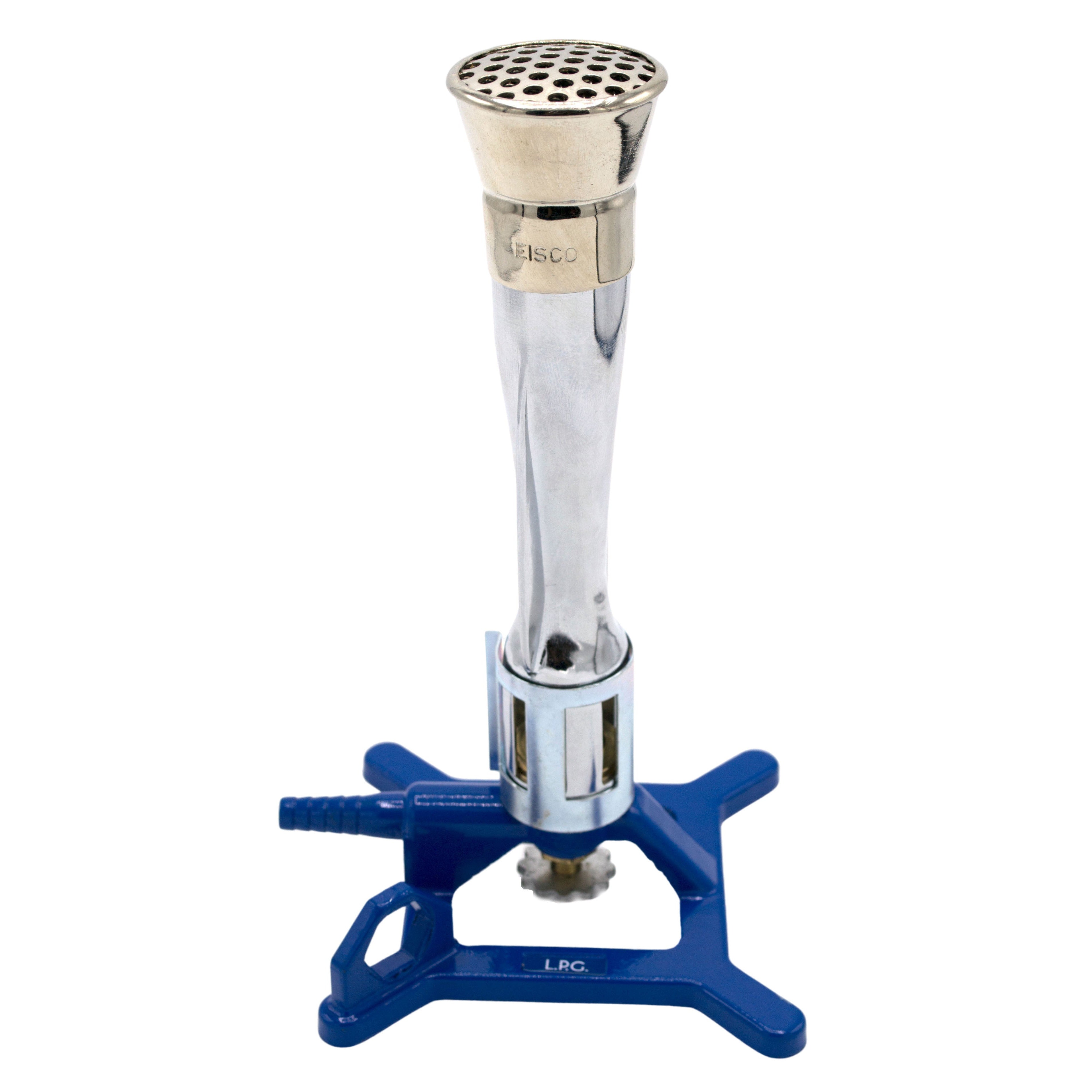

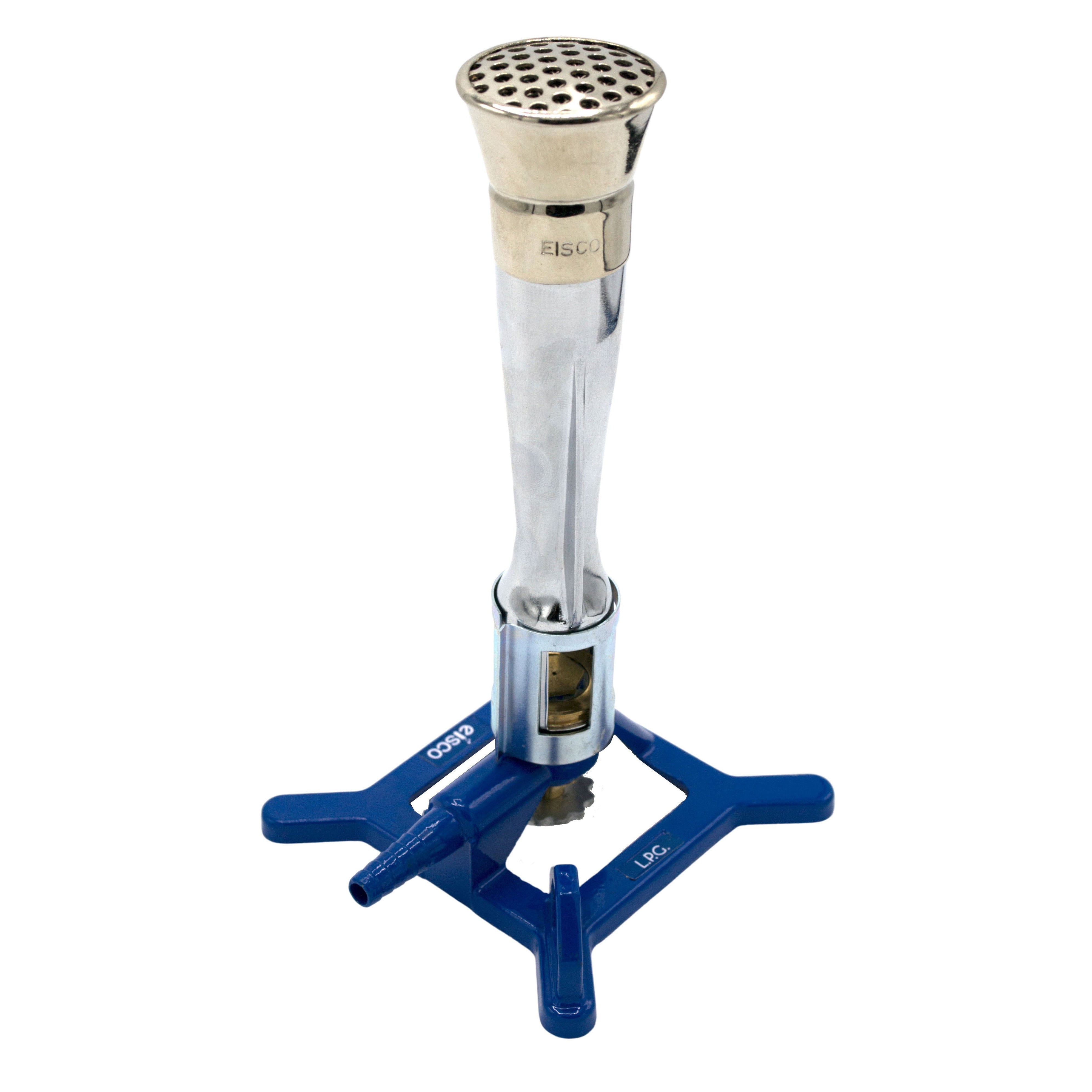

NextGen™ Meker Bunsen Burner

  • Sale
  • Regular price



  • Meker burners are used when very high temperatures are required (up to 1780°C)
  • Also specialized to finely control air / gas mixture
  • Designed with a gas adjustment dial under the burner along with threaded air flow adjustment
  • Use for safe continuous stream of flammable gas used for heating, sterilization and combustion
  • Expanded cast iron base prevents easy tipping, even with hoses connected
  • Base is coated with a non toxic powder and is chemically resistant
  • Spaced feet so burner fits comfortably under stands
  • Easy carry handle allows you to move burner without touching any hot parts
  • Tapered gas inlet ensures secure tubing connection
  • For use with 6 - 8 mm tubing (Eisco CH0100A, CH0100B)
  • Liquid propane gas and natural gas versions available
Fuel Source
CH0996LP Liquid Propane Gas
CH0996NP Natural Gas

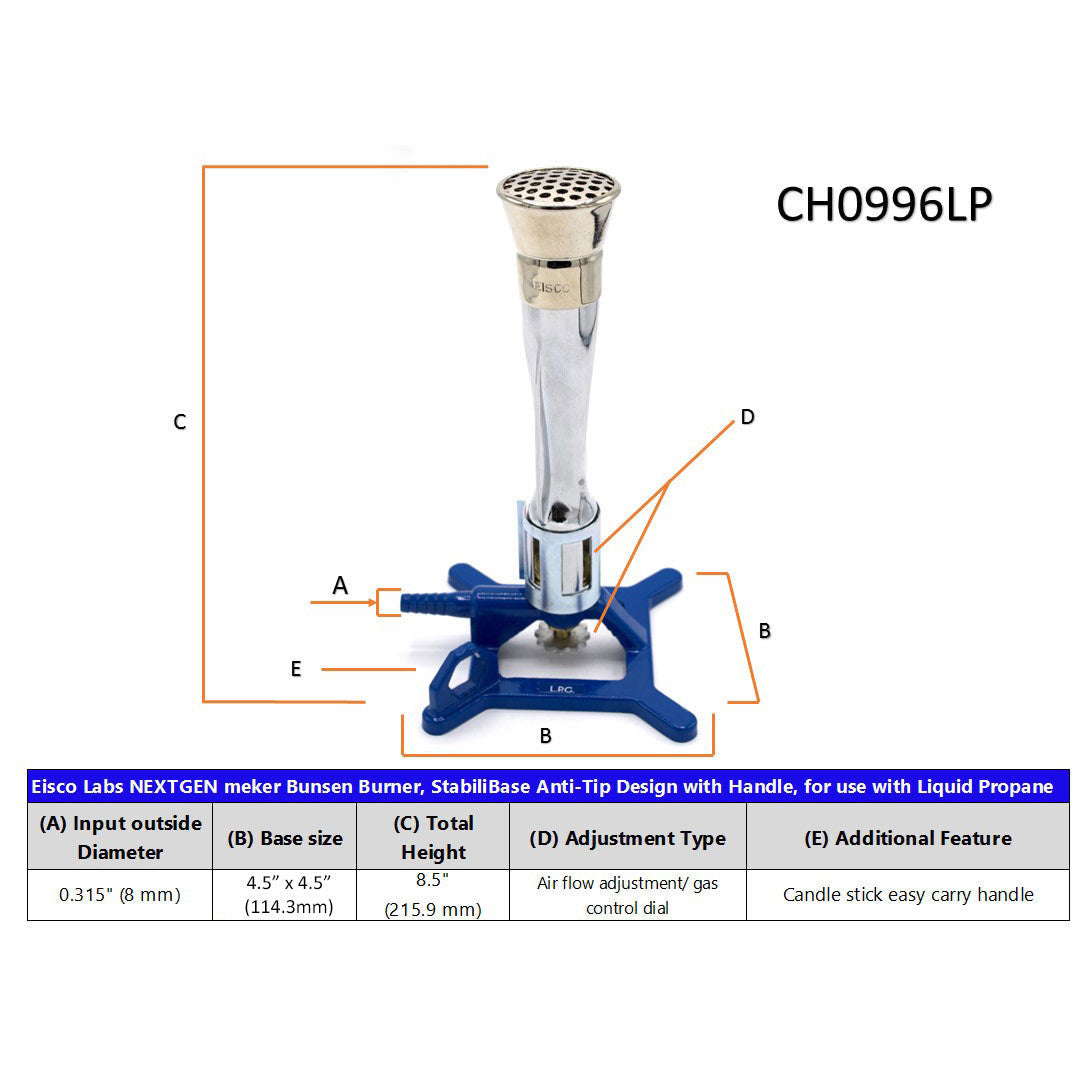

Adjustment Type Air flow threaded adjustment, gas control dial, flame stabilizer
Tube Diamater 6 - 8 mm
Base dimentions 108 x 108 mm
Height 215.9 mm (8.5")
BTU Range
CH0996LP 1900 - 3100
CH0996NG 600 - 1100
Maximum Temperature approx. 1780° C (3236° F)
Recommended Tubing

CH0100A

CH0100B
