CH196047

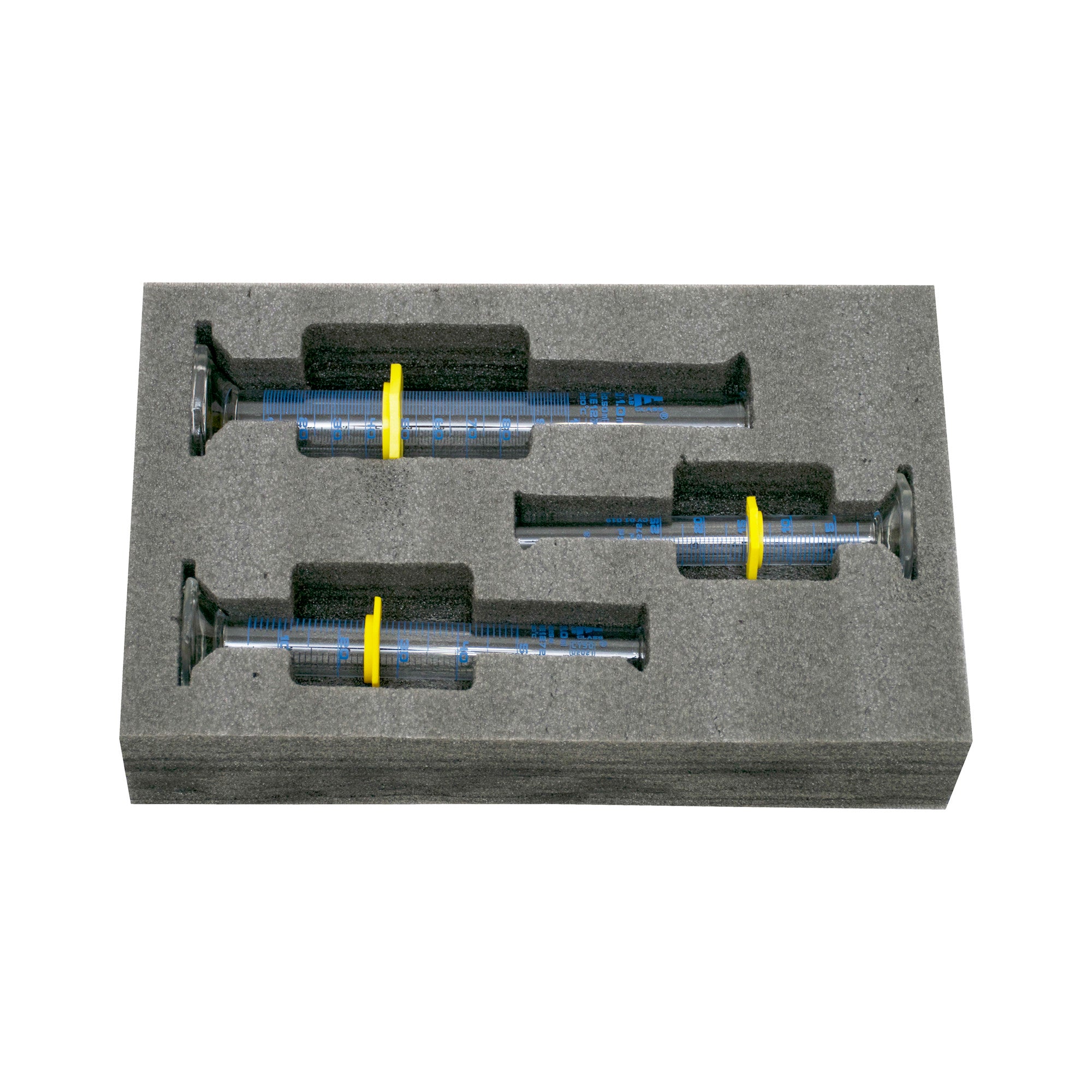

Borosilicate Glass Safety Pack Graduated Cylinder Set (25 ml, 50 ml, 100 ml) with Guard, Class A, ASTM, Autoclavable

  • Sale
  • Regular price



  • Includes (1) 25 ml, (1) 50 ml, (1) 100 ml Graduated Cylinders
  • Class A, ASTM E1272
  • Packaged in a thick, custom fitted foam casing for safe storage and transport
  • Hexagonal base for stability
  • Removable plastic protective collar to prevent breakage and spillage
  • Made from high quality 3.3 borosilicate glass
  • Low temperature gradient - can withstand high temperatures and thermal shocks*
  • Superior chemical durability*
  • Autoclavable at 121°C
  • Complies with DIN EM ISO 4788
*See specifications tab for temperature and chemical durability information
    Material 3.3 Borosilicate Glass
    Class Class A
    Capacity 25 ml, 50 ml, 100 ml
    Graduation 0.5 ml, 1.0 ml, 1.0 ml
    Tolerance ±0.17 ml, ±0.25 ml, ±0.50 ml
    Guard Yes
    Thermal Properties
    Coefficient of Linear Expansion 32.5 x 107 / °C
    Strain Point -515°C
    Annealing Point 565°C
    Softening Point 820°C
    Specific Heat 0.2
    Thermal Conductivity (Cal/cm3°C/Sec) 0.0027
    Chemical Durability
    Contact Chemical (mg/m2) Duration (hours) Loss in weight
    Water distilled at 100°C 6 10
    Water vapour steam at 121°C 1 75
    Acid HCl 6 100
    80% H2SO4 at 130°C 12 140
    Alkali -1N solution of Na2CO3 boiling 6 400
    Isotonic infusion Fluids
    NaCl (0.85%) at 121°C 2.5 70
    Glucose (5%) at 121°C 2.5 50
