CH0991LP
NextGen™ Bunsen Burner, Basic

  • Sale
  • Regular price



  • Basic and easy to use air flow valve to control flame (no gas flow valve)
  • Use for safe continuous stream of flammable gas used for heating, sterilization and combustion
  • Single adjustment (air flow valve)
  • Designed to have the flame controlled via the valve at the gas output, not at the burner
  • Expanded cast iron base prevents easy tipping, even with hoses connected
  • Base is coated with a non toxic powder and is chemically resistant
  • Spaced feet so burner fits comfortably under stands
  • Easy carry handle allows you to move burner without touching any hot parts
  • Tapered gas inlet ensures secure tubing connection
  • For use with 6 - 8 mm tubing (Eisco CH0100A, CH0100B)
  • Liquid propane gas and natural gas versions available
Fuel Source
CH0991LP Liquid Propane
CH0991NG Natural Gas

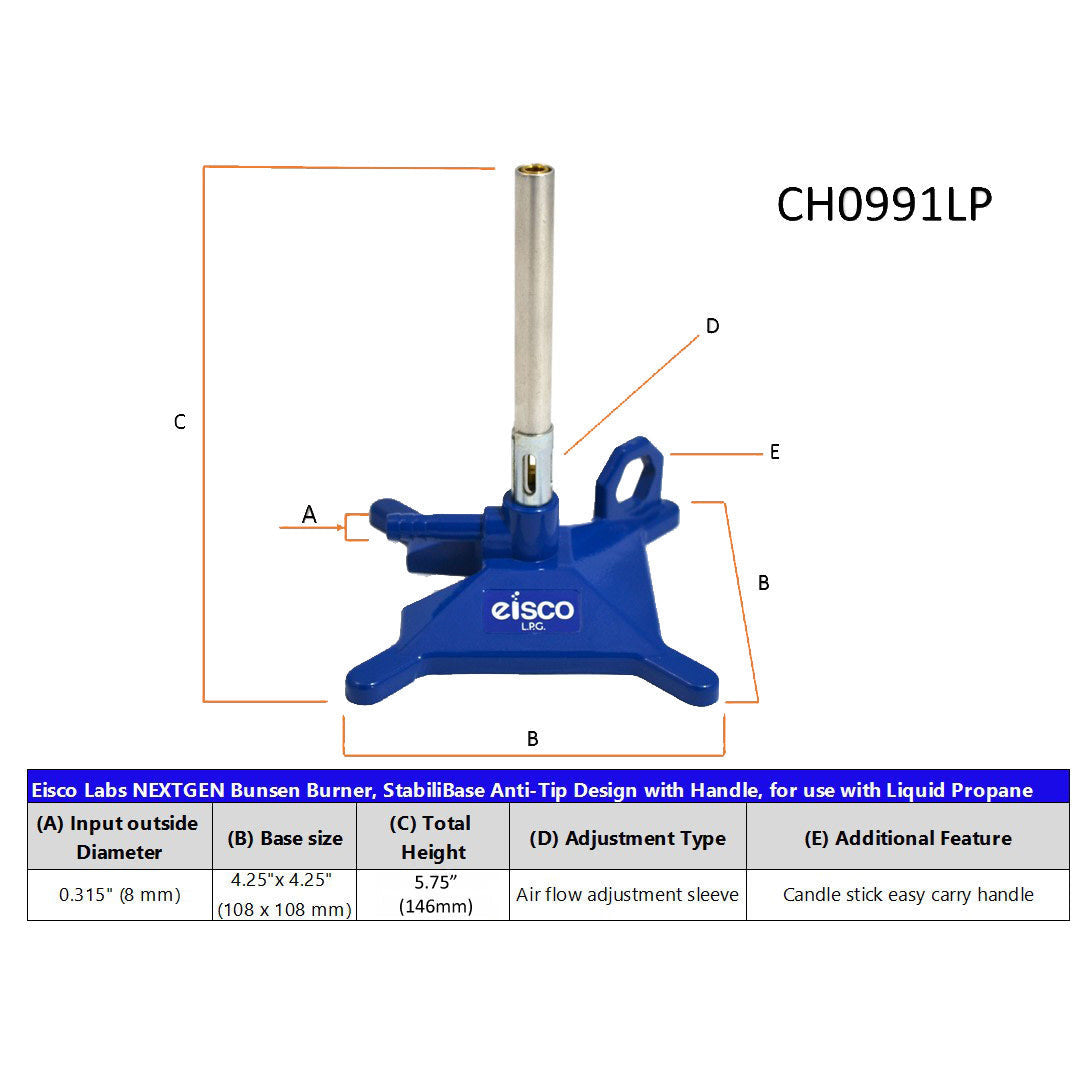

Adjustment Type Air flow adjustment sleeve
Tube Diamater 6 - 8 mm
Base dimentions 108 x 108 mm
Height 142.87 mm (5.625")
BTU Range
CH0991LP 2000 - 3200
CH0991NG 800 - 1200
Maximum Temperature approx. 1500° C (2732° F)
Recommended Tubing

CH0100A

CH0100B
